Curve GXR Ti - Campagnolo Ekar

Same Kev, New Feel

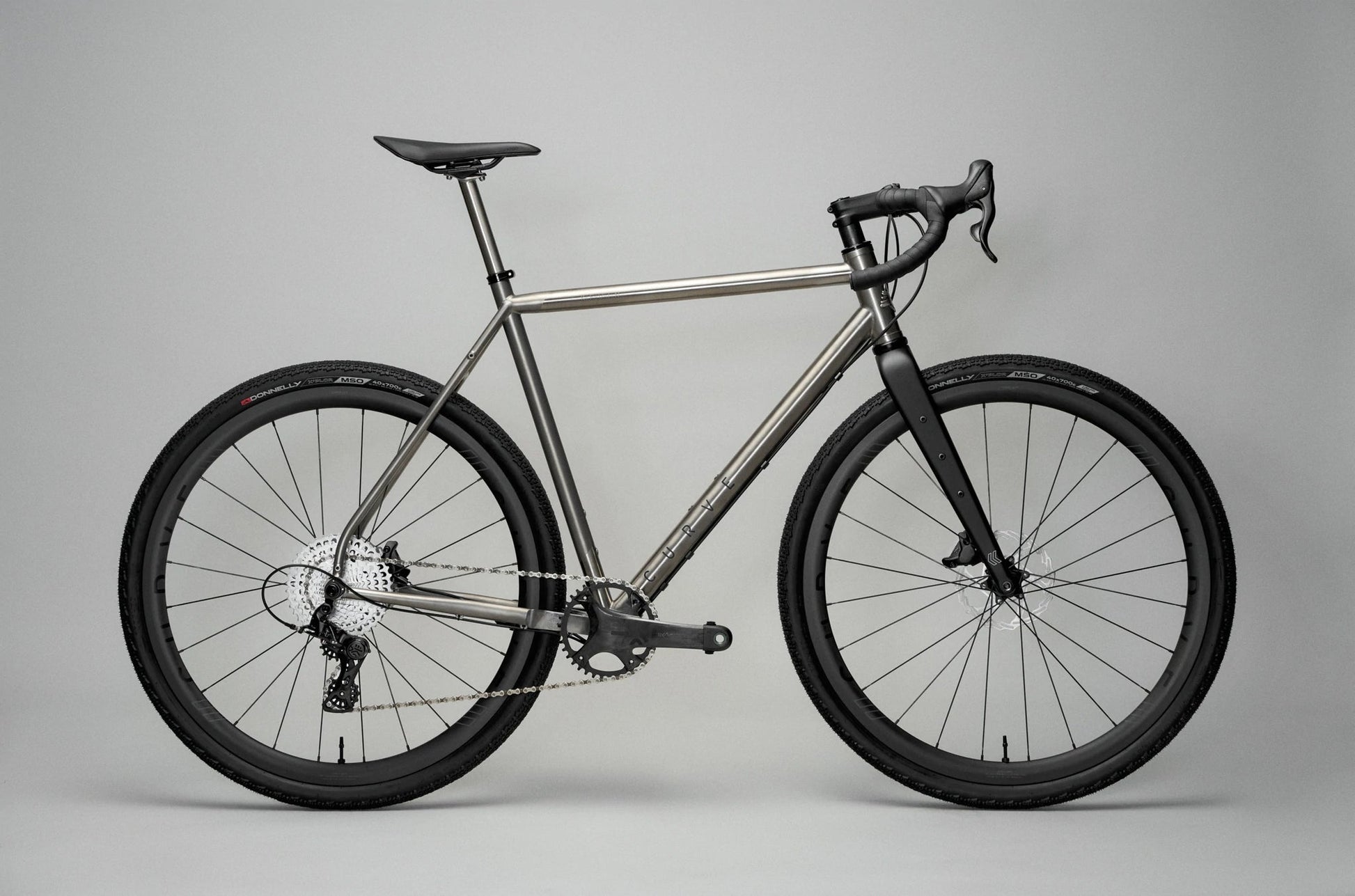

Curve has been fortunate enough to get ahold of a large number of the gravel-orientated Campagnolo Ekar groupsets, and we could think of no better bike to utilise these premium parts than our own Curve GXR, a.k.a Kevin!

Kev still maintains all the features that have propelled him to be our most popular, multi-discipline bike like our custom yoke allowing for 700c or 650b wheel options, 1x or 2x drivetrain compatibility and ample space for bikepacking bags, but now has acquired the self-styled 'world's lightest gravel groupset' and arguably best looking!

Named after and tested on the diverse, lesser-known foothills of Cima Ekar in the Venetian PreAlps, the Ekar 13-speed groupset is designed around a 1x-only system to provide a wide gear ratio for the mountainous ascents with the best chain security when traversing the gravel paths, singletrack and rock-laden descents.

With only limited numbers of Ekar Kev, we are very excited to have the opportunity to support our dealers with this build option but more so looking forward to seeing Ekar Kev take on some epic adventures around the world with a bit of Italian flare to boot!

Frameset

Frame - Titanium Curve GXR

Fork - Curve Ride 400

Headset - Curve 44 mm semi-internal

Seat Clamp - Curve Alloy 31.8 mm

Other - Curve Cocky Headbadge, 12 mm Front & Rear Axles, spare rear derailleur hanger

Groupset Options

Campagnolo Ekar

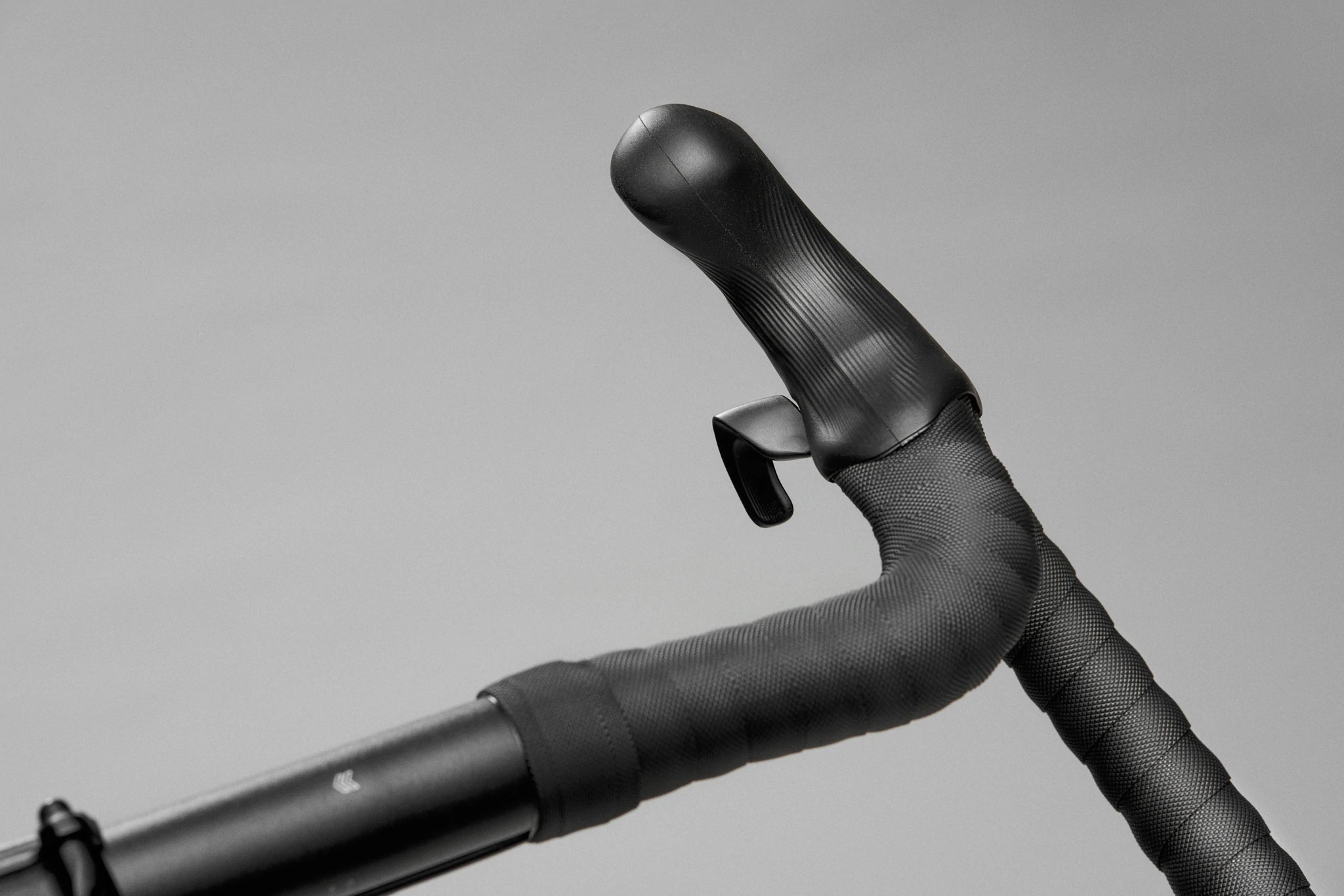

Shifter/Levers - Campagnolo Ekar 1x13 sp - LHR / RHF

Brakes - Ekar Caliper w/160 mm rotors

Crank - Ekar 13 sp 38t

XXS-S: 170 mm | M-LG: 172.5 mm | XL-XXL: 175 mm

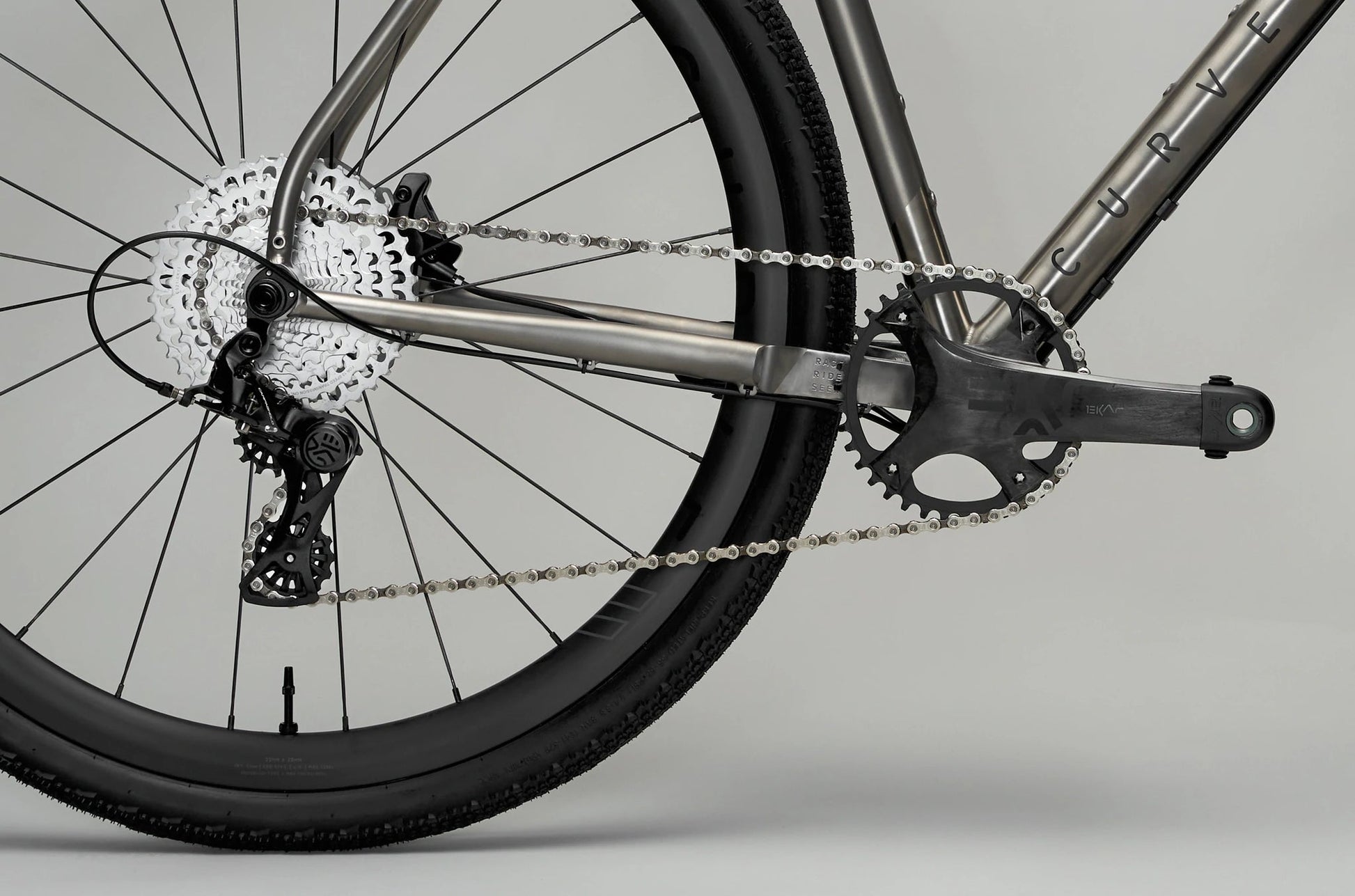

Rear Derailleur - Ekar 1x13

Cassette - Ekar Cassette 9-42t

Chain - Ekar 13 sp C-Link

Wheelset Options

G4T 35 - 700C

Curve carbon all-road wheels:

- 21 mm internal, 28 mm external, 35 mm deep

- Hub: DT Swiss 350 24H Centre Lock - N3W Freehub

- Spokes & Nipples: Sapim CX Ray & Brass

Finishing Kit

Bottom Bracket - Curve T47 68 mm - Ekar Specific

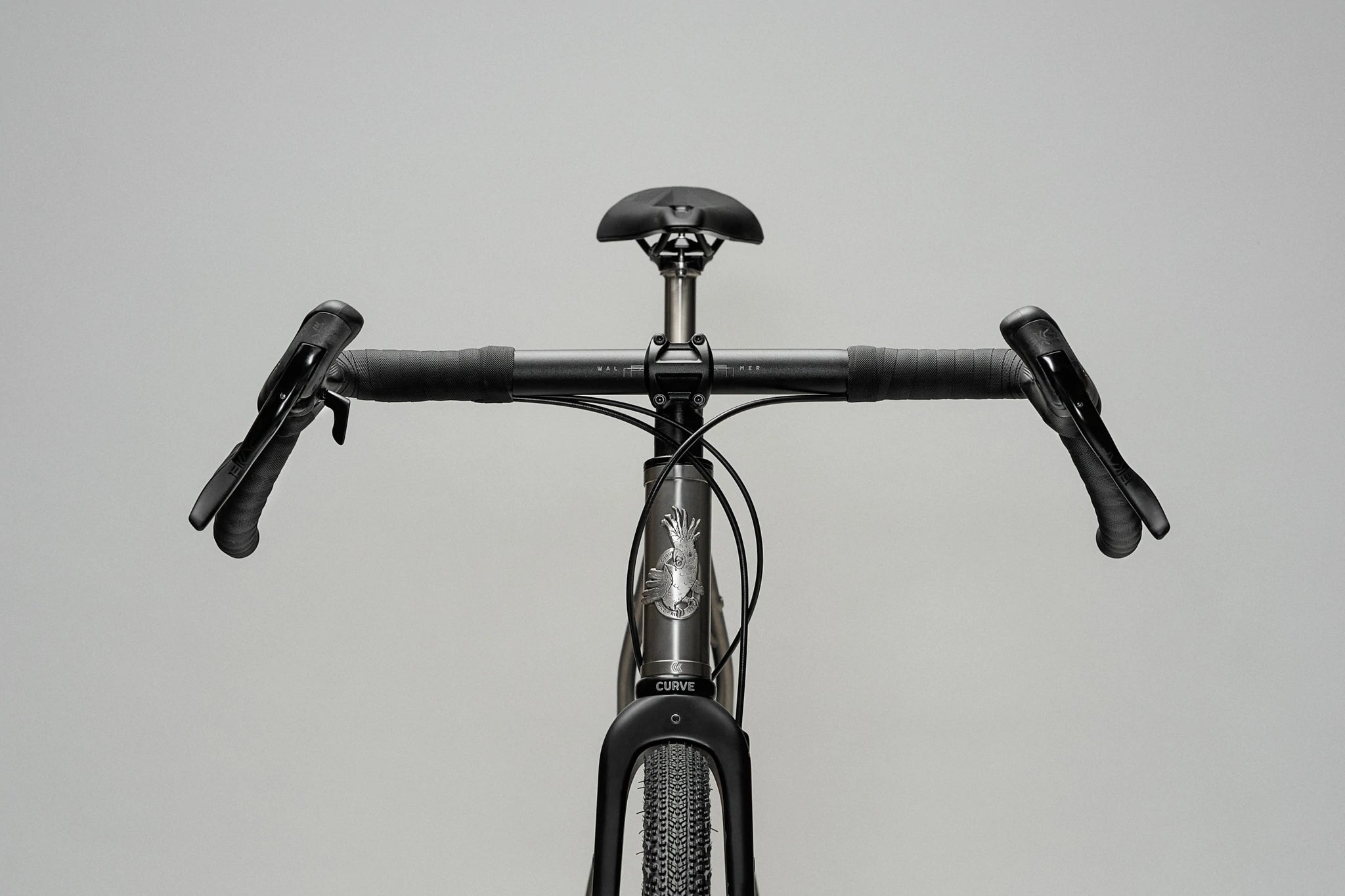

Bars - Curve Walmer Bars

XXS: 43 | XS-M: 46 | L–XXL: 50

Stem - FSA V-Drive

XXS: 60 mm | XS-S: 70 mm | M-LG: 80 mm | XL-XXL: 90 mm

Seatpost - Curve Titanium 27.2 x 350 mm

Saddle - Fi'zi:k Vento Argo

Tyres - Donnelly X'Plor MSO 700C x 40

Bar Tape - Curve - black anti-shock
