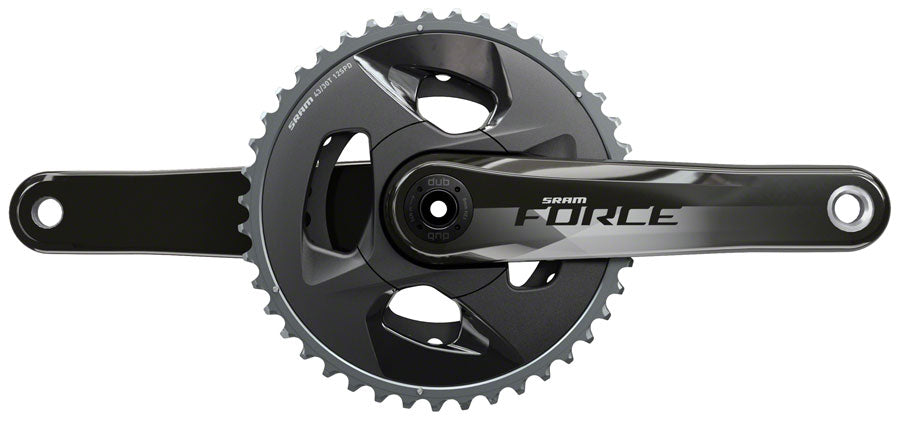

SRAM Force DUB Crankset Carbon Road Double Gloss 48-35T 175MM
SRAM Force DUB Crankset Carbon Road Double Gloss 48-35T 175MM
Couldn't load pickup availability
SRAM Force DUB Crankset Carbon Road Double Gloss 48-35T 175MM
The Force DUB 2-speed crank offers a wider range and at the same time smaller gear jumps. What may sound absurd at first is made possible by the new X-Range translation variants in combination with the Force 12-speed cassette. Thanks to the 10 sprocket of the cassette, smaller chainrings are enough to achieve the same maximum development as with an 11 sprocket. The smaller size combined with the unique one-piece design have made the chainrings lighter and stiffer at the same time. A new tooth profile with a more durable coating extends the life of the chainrings by up to 50% compared to the previous version. The crankshaft was developed for the new DUB Road bottom bracket standard for a wide intended use of crank intended use . The crankshaft is compatible with all common bottom bracket housings via the corresponding DUB bottom bracket.
Technical data:
intended use : road bike, gravel, cyclocross
Crank arm material: UD carbon
Crankshaft material: aluminum
Crankshaft diameter: 28.99 mm
Crank lengths: 165, 170, 172.5 or 175 mm
Spider / chainring holder: 107 mm 4-arm bolt bolt circle diameter
Chainring material: aluminum
Chainring gradation: 48-35 or 46-33 teeth
chain line : 45 mm
Q factor: n / a
Compatibility bottom bracket: SRAM DUB Road (optional, not included)
Compatibility chains: SRAM Force 12-speed
Driver weight: not specified
Finish: UD carbon glossy
Color decals: black / silver gray
Weight according to the manufacturer: not specified
Weight weighed: 721g (46-33 teeth; 172.5 mm)
Scope of delivery: SRAM Force DUB Gloss crank including double chainrings, without bottom bracket.
